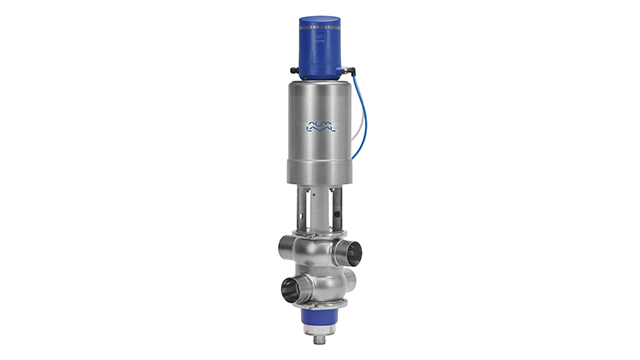

Unique Mixproof UltraPure
Alfa Laval Unique Mixproof UltraPure valves pharmaceutical industry solution is designed for Pharma and Biotech, allowing two fluids to flow safely without cross-contamination. Its modular design ensures maximum uptime for high-purity processes.
The high-purity, double seat valve for continuous processes
- Non-spilling solution
- Easy to clean and maintain
- Modular design enables easy configuration
- Easy to upgrade
- Full component traceability
How does the Unique Mixproof UltraPure valve work
Exceptional high-purity design
This advanced double block-and-bleed valve is a leading pharma valve, biotech valve, and unique mixproof valve, standing out among valves used in pharmaceutical industry and valves pharmaceutical industry solutions. It provides long-lasting, spillage-free operation for continuous processes in the pharmaceutical, biotech, personal care, and other hygienic industries. This minimizes the risk of product contamination and ensures maximum uptime as well as safe and hygienic operation.
Easy to clean and maintain
Maintenance and cleaning is quick and easy due to a top-loaded design, no adjustable components, maintenance-friendly actuator, and built-in leakage detection on all seals. Like all unique mixproof valves, the Alfa Laval Unique Mixproof UltraPure meets stringent hygienic standards for the valves pharmaceutical industry and is a trusted choice among valves used in pharmaceutical industry applications.
Easy to configure and upgrade
Optimize your hygienic process by customizing the Unique Mixproof UltraPure to suit your needs. Its modular design also makes it easy to upgrade the double seat valve whenever your process needs change, while ensuring efficient, hygienic, and continuous production. This unique mixproof valve is ideal for biotech valve and pharma valve requirements in the valves pharmaceutical industry.

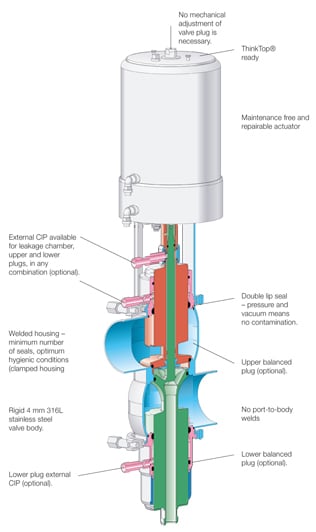

Būvniecība
Unikālā jauktspējīgā vārsta koncepcija ir balstīta uz virkni pamatkomponentu, tostarp vārsta korpusu, vārsta aizbāzni, piedziņu un tīrīšanas iespējām un piederumiem, kas nodrošina plašu lietojumu klāstu. Izmantojot šos komponentus, jūs varat izveidot unikālu jauktspējīgu vārstu, kas precīzi atbilst jūsu procesa prasībām.
Lai atvieglotu tehnisko apkopi, Unique maisījuma necaurlaidīgajam vārstam ir arī noplūdes noteikšanas caurumi, kas nodrošina iepriekšēju paziņojumu par statisko o-gredzenu nodilumu vai bojājumiem. Operatori var jebkurā laikā vizuāli pārbaudīt vārstu, to neizjaucot.
Darbības princips
Alfa Laval Unique jaucējvārsts ir normāli slēgts (NC) vārsts, kas tiek vadīts no attālinātas vietas ar saspiesta gaisa palīdzību.
Lai atdalītu abus šķidrumus, vārstam ir divi neatkarīgi aizbīdņi. Telpa starp abiem blīvējumiem veido atmosfēras noplūdes kameru. Retos nejaušas produkta noplūdes gadījumos produkts ieplūst noplūdes kamerā un tiek izvadīts caur noplūdes atveri.
Kad vārsts ir atvērts, noplūdes kamera ir aizvērta. Produkts var plūst no vienas līnijas uz otru bez noplūdes. Vārstu var viegli iztīrīt un aizsargāt pret ūdens trieciena iedarbību atbilstoši procesa specifiskajām prasībām un vārsta konfigurācijai. (Vārsta darbības laikā produkts neizplūst).
Full and documented traceability
Unique Mixproof UltraPure valves come with Alfa Laval Q-doc, a comprehensive documentation package for UltraPure equipment. It ensures full traceability of all product contact parts. Based on Good Documentation Practice (GDP), Q-doc documents every aspect from raw material to delivered equipment.
Options
- 3-A version available upon request
- Product wetted seals HNBR, NBR, EPDM or FPM
- Male parts or clamp liners in accordance with required standard
- Control and indication: ThinkTop or ThinkTop Basic
- Side indication for detection of upper seat lift
