Unique SSV Long Storke

Unikāli SSV ilgstošie vārsti lietošanai, ja nepieciešamas lielākas atveres, lai nodrošinātu maigāku, efektīvāku plūsmas kontroli, piemēram, iekārtās ar nesējiem vai produktos, kas satur daļiņas un/vai suspendētas cietas vielas, un augstas viskozitātes plūsmās.

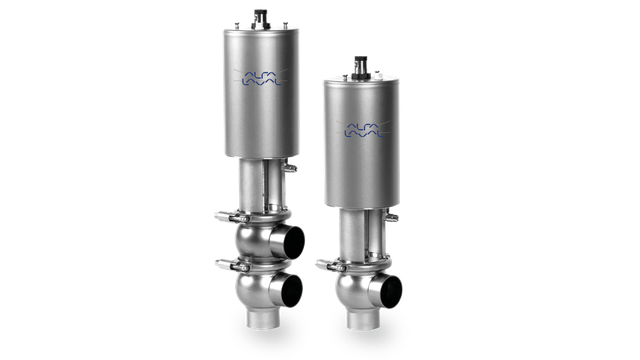

unique ssv long stroke valve right side 640x360



Daudzpusīgs un drošs viensēdekļa vārsts



Alfa Laval Unique single seat valves (SSVs) are robust and reliable pneumatic seat valves that are supremely reliable and versatile.



Modularity provides cost-effective and nearly endless possibilities for purpose-built seat valves that meet high standards of hygiene and aseptic compatibility. Configure the Unique SSV valve bodies, plugs and actuators to meet virtually any requirement.



Our Selection Guide illustrates the many combinations of features and types available with the Unique SSV valve range.



In the US and Canada the Unique 7000 corresponds to the Unique single seat valve.



Superior valve process safety



The Unique SSV range is built on a proven modular platform used on more than a million valves in service worldwide. Pressed from a single stainless steel disc, the valve body is extremely strong and durable, thus ensuring production safety. The enhanced performance of the actuator makes operation safer and more efficient.



Exceptional valve hygiene



The Unique SSV range is engineered to provide excellent hygiene and cleanability. With a surface finish of Ra ≤ 0.8μm, the smooth, weld-free valve body eliminates crevices that can trap bacteria. The design of the plug supports enhanced cleaning-in-place capabilities, and a double-acting lip seal that minimizes any risk of cross-contamination.



Alfa Laval Unique SSV valves meet most hygienic standards requested in the dairy, food and beverage, and personal care industries. The Unique SSV range is EHEDG-certified and authorized to carry the 3-A symbol. The range also provides full traceability in compliance with the EU Food Regulation 1935/2004.



Please refer to Documentation for more information.



Greater valve durability



To ensure high sealing quality, the Unique SSV range features defined compression of the O-rings with metal-to-metal contact between plug and seat. This significantly reduces wear and extends valve service life. The standard Unique SSV is supplied with a semi-maintainable actuator that has a five-year warranty.



Low total cost of ownership



Ņemot vērā vienkāršo un uzticamo dizainu, unikālais SSV diapazons nodrošina ilgu ekspluatācijas laiku, samazinātu produkta zudumu, lielāku produkta drošību un lielāku apstrādes laiku. Tikai dažas kustīgās daļas samazina servisa un inventāra izmaksas. Efektīvākas CIP procedūras ar samazinātiem tīrīšanas cikliem un pēc tam samazināta tīrīšanas šķidrumu, ūdens un komunālo pakalpojumu izmantošana arī veicina unikālo SSV zemās kopējās izmaksas.



Product Benefits

  • Cost-effective
  • High standards of hygiene and aseptic compatibility
  • Superior valve process safety

Product catalogue

Close at hand online

Latest 'Close at hand' online version

Find an Alfa Laval product

Darbības pamatprincipi

Construction

The Alfa Laval Unique SSV range consists of one, two or three valve bodies, plug, sealing, actuator and clamp ring.

Operating principle

The Alfa Laval Unique SSV is an air-operated seat valve that is remotely operated by means of compressed air. The valve generally has two working ports for air supply in and for process air supply; for changeover valves, a third port is required.

Unique





Options

  • Fully maintainable actuator
  • High-pressure actuator
  • Product wetted seals in HNBR or FPM
  • TR2 plug seal in PTFE for special applications
  • Valve sensing and control devices, incl ThinkTop, ThinkTop Basic and IndiTop
  • Fittings in accordance with required standard
  • External surface finish 3-A bright

360° apkopes un tehniskās apkopes videoklipi

Alfa Laval Unique vienas sēžas vārsti - uzturamā piedziņa

Alfa Laval Unique vienas sēžas vārsti - piedziņas bukšu nomaiņa

Alfa Laval Unique single seat valves – product-wetted seals

Alfa Laval Unique vienas sēžas vārsti - nomainīt ar produktu samitrinātus blīvējumus
