SolidC UltraPure
SolidC UltraPure centrbēdzes sūkņu īpašībās ietilpst ārējā vārpsta un atspere, definētais kompresijas blīvgredzens uz aizmugurējās plāksnes, bezplaisu konstrukcija un īpaši standartiem atbilstoši materiāli visā garumā.
Standartizēts un pieejams
SolidC UltraPure ir standartizēts centrbēdzes sūkņa dizains, kas ir ideāli piemērots tādiem pienākumiem kā tīrīšana vietā (CIP) un neregulāra produkta pārsūknēšana. Tā ir galvenā izvēle iekārtām, kurās galvenais kritērijs ir higiēnas un pirkuma cenas kombinācija.
Viegli tīrāms
Solidc UltraPure centrbēdzes sūkņi ir projektēti ar funkcijām, kas nodrošina konsekventu darbību, kā arī novērš jebkādu piesārņojuma risku. Padziļinātas zināšanas par procesu ir radījušas projektu, kas ļauj izvairīties no pārslogojumiem, kuros var uzkrāties piesārņojums vai veidoties baktēriju augšana. Tas padara SolidC ātri un viegli tīrāmu, ietaupot laiku, tīrīšanas līdzekļus un augstas tīrības ūdens patēriņu.
Tieši tāpat kā augstākās kvalitātes LKH UltraPure, SolidC UltraPure ir ārējs vārpstas zīmogs un pusatvērts impelators ar līdzsvara caurumiem. Kopā ar dizainu bez plaisām tās ir trīs galvenās īpašības, lai nodrošinātu gala produkta kvalitāti.
Piegāde un piegāde
Solidc UltraPure iekārtas ir pieejamas četros dažādos izmēros. Visas standarta sastāvdaļas tiek turētas krājumā, lai saīsinātu izpildes laiku un izvairītos no nevajadzīgas dīkstāves.
Biopharm dokumentācijas pakotne
Visi Alfa Laval biopharm komponenti tiek piegādāti ar Q-doc produkta dokumentāciju, kuras pamatā ir IKP (labas dokumentācijas prakse). Q-doc pakete ietver aprīkojuma rokasgrāmatas, rūpnīcas akceptēšanas testus/veiktspējas testu, kvalitātes un ražošanas procedūras, attiecīgos materiālu sertifikātus un nepieciešamo informāciju par detaļām un pakalpojumiem.
Garantija
Alfa Laval nodrošina 3 gadu garantiju visām nevalkājamām detaļām, ja vien tiek izmantotas oriģinālas detaļas.
Sertifikācija, specifikācija un standarti
SolidC UltraPure diapazons atbilst 3A un CE noteikumiem, un tam ir EHEDG sertifikācija. Uzziniet vairāk par SolidC UltraPure produkta dokumentācijā.
Product Benefits
- Value
- Repeatability
- Reliability
Product catalogue
Alfa Laval LKH Prime
Premium goes Prime - Setting a new standard in self-priming pump technology.
Alfa Laval LKH Prime
Darbības pamatprincipi

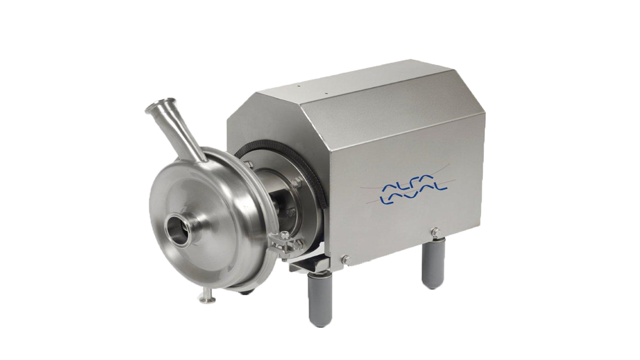

SolidC UltraPure construction
The high purity pumps is ideal for biotech applications, and consist of a standard motor, stub shaft, mechanical compression coupling, stainless steel adaptor, back plate, impeller, pump casing and shaft seal.
Unique impeller design
Alfa Laval centrifugal pump features a unique semi-open impeller with a special vane design that ensures particularly low NPSHr (Net Positive Suction Head required), preventing cavitation and minimizing mechanical damage. This makes the pump perfect as a biotech pump in sensitive applications.
The impeller also features balancing holes for excellent circulation in the shaft seal area and reduced axial forces, minimizing wear on both the shaft seal and drive motor bearings. The semi-open impeller with balancing holes ensures high cleanability of the shaft seal, a key requirement for high purity pumps.
External shaft seal
The front-loaded external shaft seal, with the spring and washers mounted on the atmospheric side, is an important feature of the SolidC UltraPure biotech pump design. This configuration makes maintenance rapid, easy and inexpensive – it only takes about 5 minutes to replace the shaft seal.
Using a front-loaded shaft seal, combined with the pipe couplings mounted on the pump housing, also means there is no need to disconnect or remove the pump casing for inspection or maintenance. This saves time and money, and helps keep downtime to a bare minimum. This feature also means that a spare pump without casing could also be quickly put into place .
Alfa Laval uses the same shaft seal for the whole SolidC UltraPure biotech pump range – and the same seal is used in LKH UltraPure centrifugal pumps. This standardization keeps inventory down and makes replacing wearing parts a quick and easy task.
1: Defined O-ring groove providing firm positioning of the O-ring on pump casing and metal to metal contact provides a predefined compression of the O-rings with no crevices for contaminants.
2: External shaft seal with few wear parts and spring mounted on the atmospheric side, meaning no wear of the spring or other internal parts going into your product.
Warranty
Alfa Laval provides a 3-year warranty on all non-wearing parts, provided genuine parts are used.
Certification, specification and standards
The SolidC UltraPure range of high purity pumps has EHEDG certification. Learn more about SolidC UltraPure alfa laval centrifugal pump solutions in the product documentation.
