Termometrs

Alfa Laval thermometers are mechanical temperature gauges for use in dairy, food and beverage, personal care and biopharm production processes that require precise local indication of temperature.

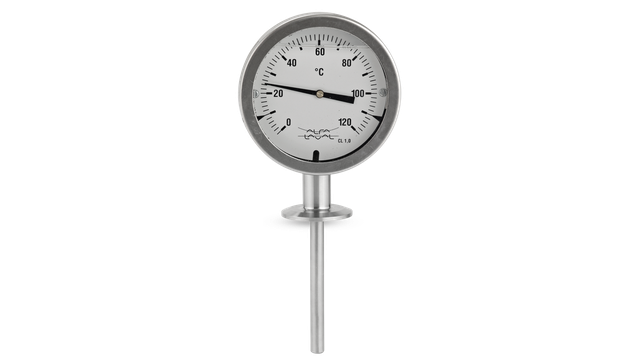

thermometer front 640x360

Stable, accurate temperature measurement

Alfa Laval thermometers are sturdy mechanical temperature gauges that provide accurate measurement of local temperature for a broad range of hygienic processes. Temperature indication is easy to read on the 80 or 100 mm-diameter dial. A built-in bimetallic coil automatically compensates for any effect on the reading caused by changes of the ambient temperature.

Reliable thermometer design

Manufactured from robust, corrosion-resistant materials, these thermometers feature 304 stainless steel casing and a 316 stainless steel clamp connection and sensor tube.

Alfa Laval thermometers come as standard with liquid-filled housing. An inert gas that is completely neutral to the environment is used as the filling medium for the sensor tube, making the thermometers suitable for hygienic processes.

For more information, please refer to Documentation.

Product Benefits

  • Stable, accurate temperature measurement
  • Manufactured from robust, corrosion-resistant materials
  • Completely neutral to the environment



Product catalogue

Close at hand online

Latest 'Close at hand' online version

Find an Alfa Laval product

Darbības pamatprincipi

Operating principle

Alfa Laval thermometers measure temperature by means of the differential thermal expansion of the filling medium in the closed sensor. The change in pressure actuates the spiral spring, which drives the dial movement. A built-in bimetallic coil automatically compensates for the effect on the reading caused by change of the ambient temperature.


Options

  • Electropolished surface finish
  • Calibration-, 3A- and 3.1-certificate
  • U.S. Food and Drug Administration Declaration of Conformity
  • Bar, KPa, Psi scale
