Recycled paper producer uses Alfa Laval's ALDRUM to cut sludge dewatering costs
Dalum Papir A/S is one of the world’s leading manufacturers of 100% recycled, high-quality paper for the graphics industry.DATUMS 2017-07-13
The original paper factory was built in 1874 in Dalum, on a river-bank site near the Danish city of Odense. Dalum Papir has a fine-paper production capacity amounting to 140,000 tons per year, and an important role is played by the company’s de-inking plant at Maglemølle, which produces 70,000 tons of recycled pulp annually.
Recycling is the basis for all paper production at Dalum Papir. Because of its strong focus on environmental issues, Dalum Papir installed a complete wastewater treatment system at the Maglemølle facility. This includes
- Flotation sludge treatment
- Primary treatment of wastewater
- Biological treatment.
The de-inking sludges are fully dewatered on site prior to disposal.
Cutting dewatering costs
Dalum Papir uses a drum thickener to dewater the de-inking sludge from the flotation cells. “This enables us to achieve an 80% reduction in the volume of sludge sent to the screw press,” says John Nielsen, engineer at Dalum Papir.
When production increased in 2000, Dalum Papir was able to boost its sludge handling capacity simply by upgrading the thickening equipment, without having to make any changes to the screw press.
“We chose ALDRUM, the Alfa Laval drum thickener, because of its simple construction and its very efficient design,” adds Mr Nielsen. The drum thickener previously used for reducing the volume of recycled paper sludge was proving too expensive, due to spare parts and breakdowns.

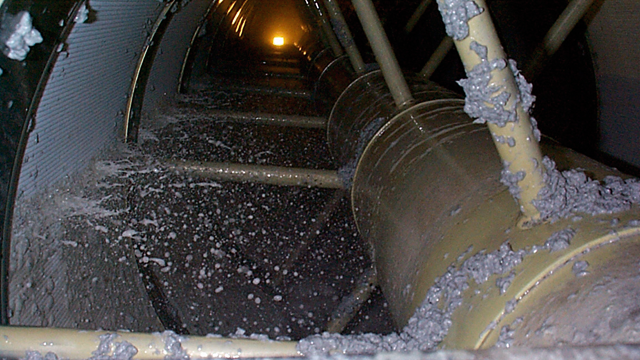

The new equipment from Alfa Laval enabled Dalum Papir to increase production capacity. The Alfa Laval ALDRUM Mega drum thickener and Mega
Duo flocculation reactor made it possible to reduce the volume of de-inking sludge by almost 80%. This means that the company will only have a very limited need for additional dewatering capacity if production increases in the future.
Low running costs
The installation has been running round the clock since November 2000, corresponding to approximately 8,200 hours of problem-free operation per annum. Thanks to its straightforward design, the ALDRUM Mega drum thickener requires very little supervision and no maintenance at all.
When asked about the company’s maintenance programme for the ALDRUM unit, Mr Nielsen explained, “Apart from greasing, we haven’t needed to do any maintenance for almost 5 years!”
We chose ALDRUM, the Alfa Laval drum thickener, because of its simple construction and its very efficient design. This enables us to achieve an 80% reduction in the volume of sludge sent to the screw press.
John Nielsen, Engineer at Dalum Paper
Reduce sludge volumes by 85% With the ALDRUM sludge thickening system you can reduce your sludge volumes 85% to 90% and save money. If you’re transporting liquid sludge, you can reduce hauling costs.
- overall reduction in dewatering costs
- lower maintenance costs than other thickening technologies
- compact design saves space
- lower water consumption
- enclosed process for better working environment.
